High Power Strobe LED Light Units
Extreme Power Strobe Light enables further acceleration of fast moving production lines.
PF Series
High Power Strobe LED Light Units enable further acceleration of fast moving production lines. Peak luminescence achieves 7 million lx. Freely adjustable flash timing enables strobing within the exposure period of the camera.
Ring Lights [Direct Lighting]
These Ring Lights are equipped with high-density LED arrays in a ring shape. Direct light is radiated with focus on the center of the work-piece from any angle.

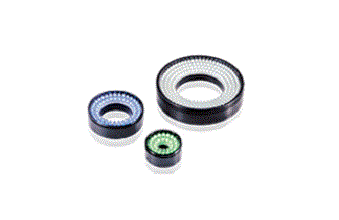

LDR2 Series
Any angle can be created with CCS's unique flexible circuit boards. The required irradiance is ensured by radiating direct light towards the center of the work piece.
SQR Series
The product lineup includes the SQR-56 Series in which LEDs are mounted perpendicular to a flat circuit board so that direct light is radiated towards the center of the work piece. The product lineup also includes the SQR-TP Series which radiate convergent light using chip LEDs arranged in a compact case.
Low-angle Ring Lights [Direct Lighting]
These Low-angle Ring Lights provide light from a low angle to the center section. The edges of the workpiece and any engraving/damage on the metal surface can be highlighted clearly.

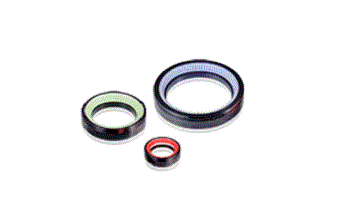

LDR2 Series
Any angle can be created with CCS's unique flexible circuit boards. The required irradiance is ensured by radiating direct light towards the center of the work piece.
LDR-LA1 Series
LEDs are mounted perpendicularly on a line-shaped board and arranged in a ring facing horizontally. The thin design has a thickness of only 10 mm. These Ring Lights are used extremely close to the work piece.
Bar Lights [Direct Lighting]
These Bar Lights feature high-density LEDs mounted on a flat circuit board. They can be used for a wide range of applications because the illumination angle is set freely.

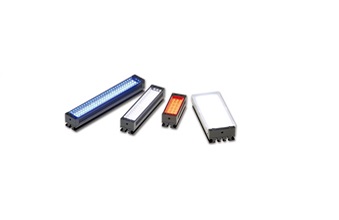

LDL2 Series
Emitting surface with LEDs arranged in straight lines radiate direct light. High flexibility in installation is also provided.
LDLB Series
These Bar Lights have a built-in controller to switch between overdrive lighting and constant lighting, and are applicable for long-distance irradiation.

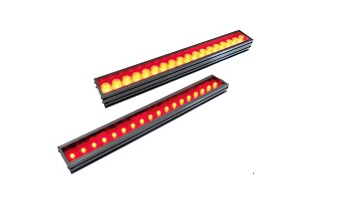

HLDL2 Series
Long-distance irradiation is the specialty of these Bar Lights.
Ring Lights [Indirect Lighting]
These Ring Lights achieve uniform illumination through diffused light. They are ideal for applications where the entire workpiece must be illuminated evenly.
HPR2 Series
These Ring Lights have "easy to use", "bright", and "uniform" characteristics. The product lineup includes abundant size variations, full color (RGB) models, and satisfying accessories such as the Light Joint Brackets.
HPR Series
These Ring Lights have "easy to use", "bright", and "uniform" characteristics. A unique illumination structure achieves uniformly diffused illumination.

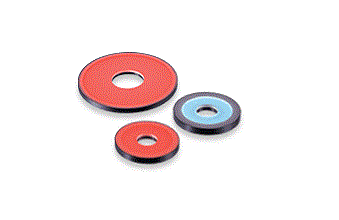

LFR Series
LEDs are embedded around a light-guiding diffusion plate. Uniform light is radiated from a flat emitting surface. The product lineup includes the LFR-100K and LFR-130K Light Units, in which light is radiated from an emitting surface arranged at an angle.

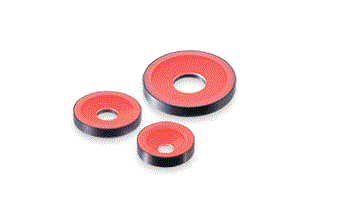

LKR Series
LEDs are embedded around a light-guiding diffusion plate. Uniform light is radiated towards the center from a light-emitting surface arranged at an angle to the work-piece.

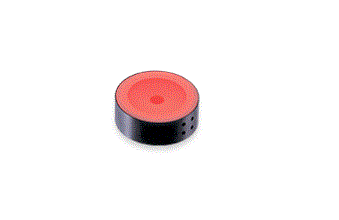

LAV Series
These Light Units have a composite structure for both diffused and coaxial illumination. Curved work-pieces with glossy surfaces such as soldered products are evenly illuminated.
Low-angle Ring Lights [Indirect Lighting]
These Low-angle Ring Lights allow the edges of the workpiece and engraving or damage on surfaces to be detected through low-angle diffused light.

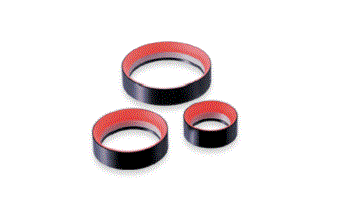

FPR Series
At a low angle, these Ring Lights can be used to highlight and image the characters and scratches in a dark field. At a high angle, these Ring Lights can be used to uniformly image the entire workpiece in a bright field. CCS can offer various lighting methods according to the applications.
Low-angle Square Lights [Indirect Lighting]
These Low-angle Square Lights emit diffused light from the sides of a square case. They are ideal for detecting the edges or the surface damage of a square shaped work-piece.

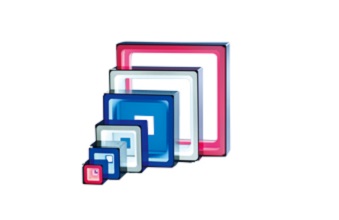

FPQ2 Series
These Low-angle square Lights are ideal for imaging square shaped workpiece. Uneven illumination which may occur with the use of the Low-angle Ring Light can be avoided. Preserving the style of the FPQ Series, these Light Units achieved high output. The 20 x 20 mm models were added to the product lineup.
Flat Lights [Indirect Lighting]
These Flat Lights emit diffused light from a flat emitting surface. CCS provides abundant product lineup to meet your needs.

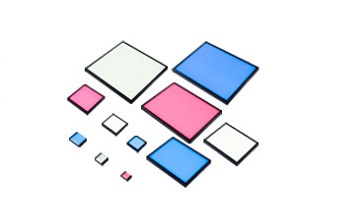

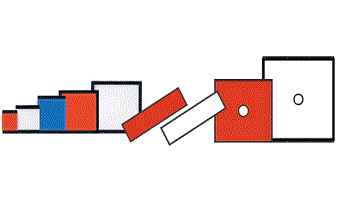

TH2 Series
These light units are evolved from TH series, and achieved high power.
TH Series
These Light Units were evolved from the LDL-TP Series to achieve high power output that was unprecedented for the Flat Lights. Abundant size variations and space-saving installation will also help your system design. The LED colors are red, white, and blue.

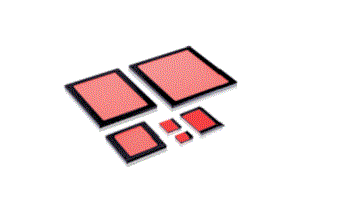

LFL Series
Light from the LEDs that are arranged around the periphery of the square shaped light-guiding diffusion plate passes through the plate and produce diffused illumination. Thin-structure design of 6 mm min. (for the LFL-612, LFL-1012, and LFL-50) enables space-saving installation.
Flat Dome Lights [Indirect Lighting]
These Flat Dome Lights provide uniformly diffused light using original lighting technology. The effect of coaxial and dome lighting is achieved with one unit.

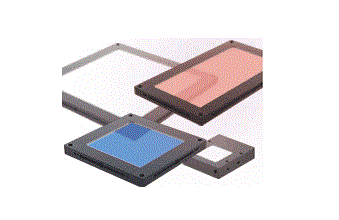

LFX3 Series
High brightness, light-weight compact design, and wide field of view.

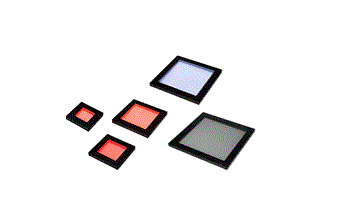

LFX2 Series
These epoch-making Light Units were achieved through our unique lighting technology. The dot pattern on the surface of the light-guiding diffusion plate controls the diffusion and transmission of the light. Uniform and shadow-free diffused light can be radiated onto the workpiece. Emitting power is greater than the LFX Series.
Line Pattern Lights
Line patterns are formed in the light emitting sections, and they highlight gentle and hard-to-find bumps on inspection objects as curved lines.

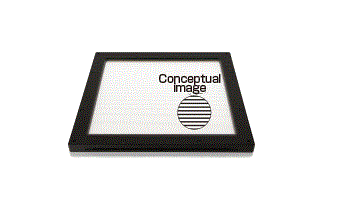

LFX3-PT Series
A cutting-edge method for inspecting bumps on a reflective surface.
We have two types of line intervals to match your inspection conitions:
1 mm type: The end of the model name is "A."
2 mm type: The end of the model name is "B."

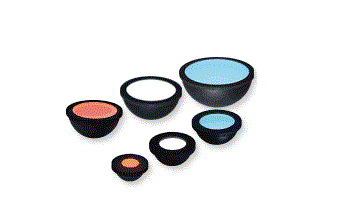

HPD2 Series
These are "high-power", "uniform", and "easy to use" Dome Lights with three times the brightness of the previous models.
Increased size variations, full color (RGB) models, and infrared (860 nm) models were added in the standard product lineup. Abundant lineup of optional products such as the joint brackets is provided.

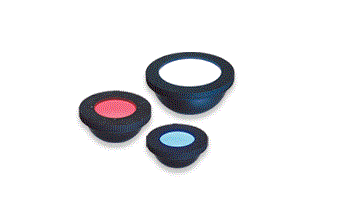

HPD Series
These are "bright", "uniform", and "easy to use" Dome Lights.
Wide and uniform irradiation area allows for use in more diversified applications.

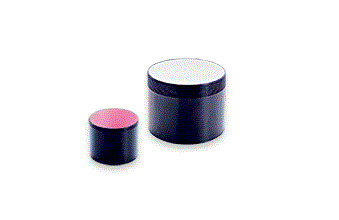

LDM2 Series
These Dome Lights provide unique heat-dissipating structure.
Diffused light is irradiated over the entire workpiece from a wide light-emitting surface.

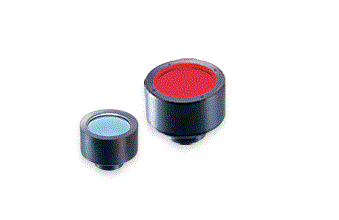

PDM Series
These Dome Lights combine the features of three types lighting: dome lighting, low-angle lighting, and coaxial lighting. Each type of lighting can be adjusted as you need.
Coaxial Lights [Indirect Lighting]
These Coaxial Lights are ideal for imaging of scratches, dents, and printed characters; mirrored surface and highly reflective work-pieces are evenly illuminated.

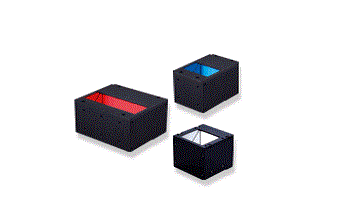

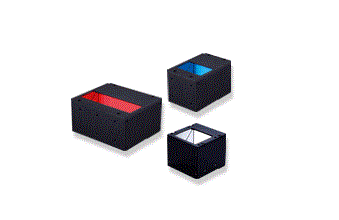

LFV3(A) Series
These Coaxial Lights have a half mirror to align the diffused light from the LED array to the same optical axis as the camera lens. Mirror surface workpieces are uniformly illuminated without unevenness. The diffusion plate is adjustable and exchangeable.
LFV3 Series
These Coaxial Lights have a half mirror to align the diffused light from the LED array to the same optical axis as the camera lens. Mirror surface workpieces are uniformly illuminated without unevenness. The diffusion plate is adjustable and exchangeable.

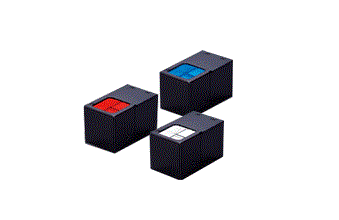

LFV3-CP Series
These Coaxial Lights achieved a compactness of size by use of a beam splitter instead of a half mirror. It is perfect for tiny workpieces and environments with limited installation space.

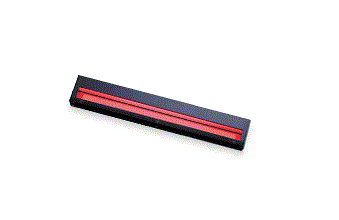

LNV Series
These line-type Coaxial Lights can be used with a line sensor camera for imaging. These Coaxial Lights are ideally suited for imaging scratches, dents, and marks on a curved surface with high reflectivity.
Coaxial Lights [Collimated Lighting]
These Coaxial Lights radiate collimated light that is ideally suited for imaging of minute scratches and dents or characters on reflective surfaces, such as CDs or wafers.

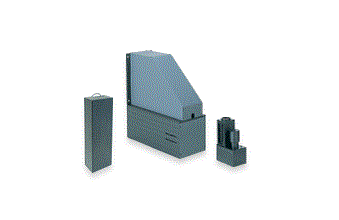

MSU Series
These Coaxial Lights provide collimated lighting which is created through a special lens. The product lineup includes five models with different fields of view and the LED colors of red (RD2), white (SW), blue (BL), and green (GR).

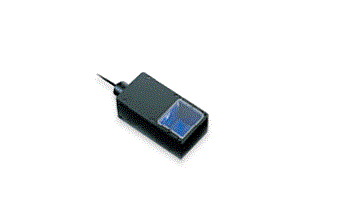

MFU Series
These Coaxial Lights provide collimated lighting from behind the work-piece. This suppresses the wraparound of light and enables precise dimension measuring and appearance inspection.
Line Pattern Lights
Line patterns are formed in the light emitting sections, and they highlight gentle and hard-to-find bumps on inspection objects as curved lines.

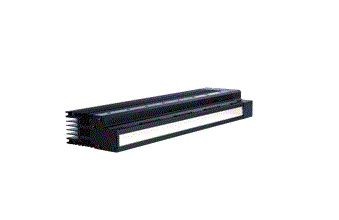

LNLP Series
An illuminance of One Million lx without cooling fans.
The original unit shape enables both low- and high-angle illumination.

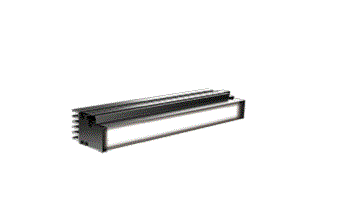

LNSP2 Series
High illuminance Light Units for Line Sensor. Achieved an illuminance of 900,000 lx by using a natural air-cooling system.

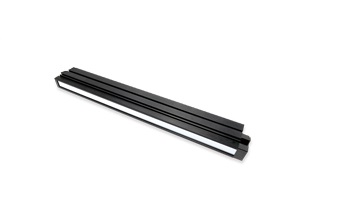

LNSP Series
Compact and high-power LED Lights for line scan applications. The light-emitting surface length can be made from 100 mm to 1000 mm in units of 100 mm.

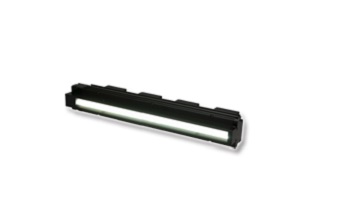

LNSP-FN Series
These Line Lights achieve high illuminance and high uniformity. Error detection function helps you avoid accidents.

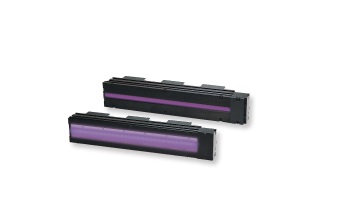

LNSP-UV-FN Series
These UV-LED irradiators are optimum for excitations. The "wide type" irradiator provides diffused irradiation over a wide area. The "narrow type" irradiator provides less-attenuation, long-distance irradiation.

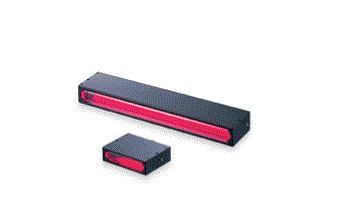

LN Series
The width of the converged light can be adjusted by changing the end unit. Units with 60-mm or 20-mm light-emitting surface are available. The LN-HK Series, which provides high power illumination with white power LEDs and unique heat-dissipating structure, is also available.
Line Pattern Lights
Line patterns are formed in the light emitting sections, and they highlight gentle and hard-to-find bumps on inspection objects as curved lines.

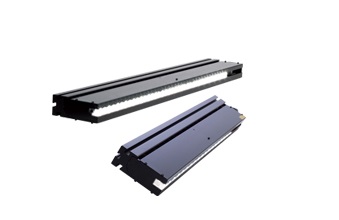

LNDG Series
These Line Lights are ideally suited for detecting bumps and subtle vertical wrinkles in plain sheets that disperse light.

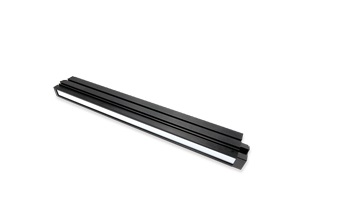

LNIS Series

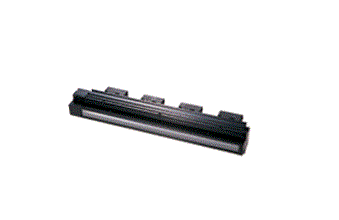

Oblique angled Lights for line sensor. These Line Lights are specialized in the inspection for streaks and moving-direction scratches.
LNIS-FN Series
These Line Lights are best for the streak inspection and finding moving-direction scratches.
Line Lights [Indirect Lighting]
These Line Lights are ideally suited for imaging with a line sensor camera. The radiant power, uniformity, and length can be selected according to the application.
LNSD Series
Easy-to-use, compact, and lightweight Line lights.
2 types (High luminance/uniformity) x 3 colors (White, red, and blue LEDs) x 30 sizes (100 mm to 3,000 mm) = 180 models to meet your needs.

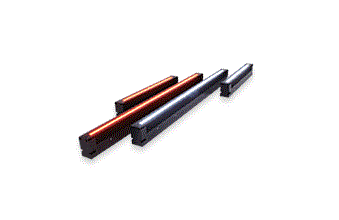

HLND Series
Use of high intensity LEDs and unique illumination structure enables high power output. The TT type units are used for transmission lighting and the RR type lights are used for reflection lighting. The light-emitting surface length can be made from 100 mm to 2700 mm in units of 100 mm.

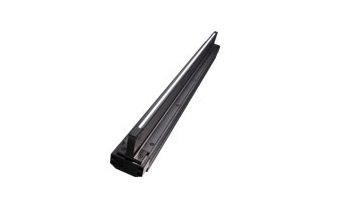

LT Series
The proprietary illumination structure of the LT Series delivers the industry's top level of uniformity and brightness and offers the optimum lighting for line sensor cameras.
A wide range of variations of emitting surface lengths, from 100 mm to 1,800 mm, are available.

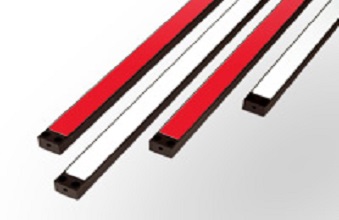

LND2 Series
These Line Lights achieve high brightness which is equivalent to a fluorescent lamp while keeping the price down. Highly uniform diffused light is irradiated.
Compact Spot Lights [Indirect Lighting]
These Spot Lights are applicable to wide range of applications and feature lightweight, size-compactness, and low power consumption.

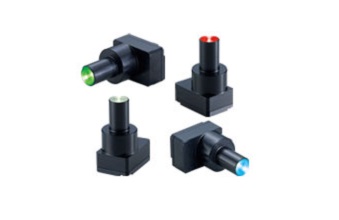

HLV2-14 Series
The HLV2-14-series Spot Lights feature lightweight and compact casing with an outer diameter of ¦µ14 mm, a length of 28 mm, and a weight of 18 g. The product lineup includes the LED colors of red (RD), white (SW), blue (BL), and green (GR).

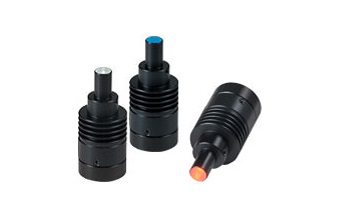

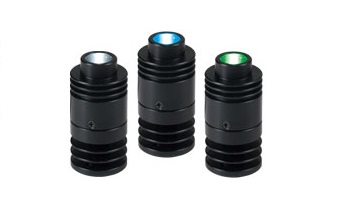

HLV2-22 Series
The HLV2-22-series Spot Lights have a unit tip with an outer diameter of 8 mm. The product lineup includes the LED colors of red (RD), white (SW), blue (BL), and green (GR).

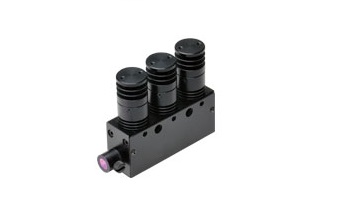

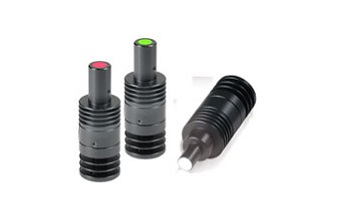

HLV2-22-3W Series
The HLV2-22-3W-series Spot Lights have a higher output capacity than the HLV-24 Series. ¦µ8-mm or ¦µ12-mm outer diameter is available for a unit tip. The product lineup includes the LED colors of red (RD), white (SW), blue (BL), and green (GR).

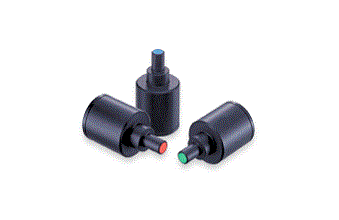

LV Series
The LV Spot Lights feature low power consumption. The product lineup includes the LED colors of red (RD), white (SW), blue (BL), and green (GR).
High-power Spot Lights [Indirect Lighting]
These Spot Lights uniformly focus light into the region you need.

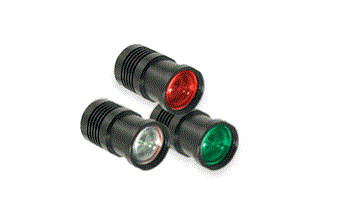

HSL Series
These LED Spot Lights can be used to replace halogen floodlights. Our unique light-converging design enables an effective use of light by preventing unnecessary loss. Low power consumption, low heat emission, and IP67 protection make it applicable to many applications.

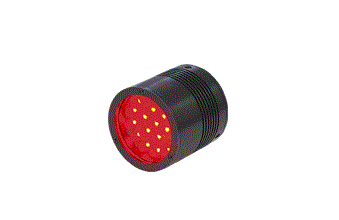

LSP-41
The high-luminance Spot Light LSP-41 Series is suited for limited and long working distance from 300 to 500 mm, with a compact design — 41 mm diameter housing.
Fiber Heads
These LED Fiber Heads were developed through CCS's unique light convergence technology. The product lineup includes straight and ring-type Fiber Heads.
PFBR Series
These LED Light Sources achieved highest level in the industry with 2 million lx. The light output exceeds that of a 250-W metal halide light source.
PFB2 Series
These LED Light Sources can be used to replace halogen light sources. These environment-friendly next-generation Light Sources feature a low power consumption, a long service life, and a significant reduction in maintenance work compared with 100-W halogen light sources.
Light Sources for Fiber Heads
These Light Sources for Fiber Heads achieved lightweight, size-compactness, and low power consumption. Full-color Light Sources are also included in the product lineup.

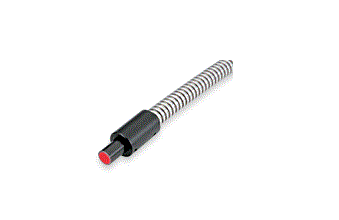

HFS Series
This straight-type Fiber Head has a tip of the same shape as a straight light guide (with a diameter of 8 mm). This enables it to be mounted directly on a coaxial-type macro lens and telecentric lens, and so on.

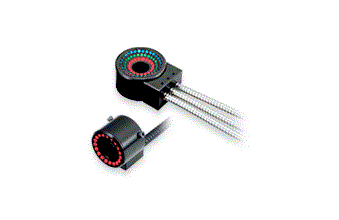

HFR Series
These ring-type Fiber Heads perform convergent illumination only for the required field of view. This achieves a significant improvement in irradiance compared with conventional halogen fiber lights.
UV Lights [Ultraviolet Lighting]
These UV-LED Lights are ideal for stable fluorescent observation.

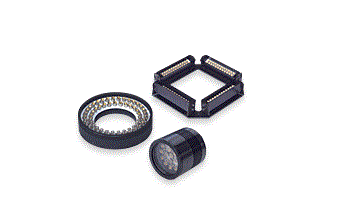

UV Series
These UV Lights achieved safety and reliability by adopting our unique anti-spark structure. CCS offers a rich product lineup of 9 series and 31 models.

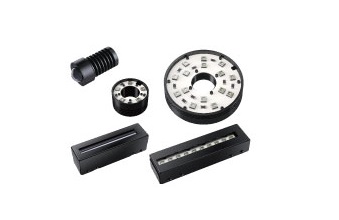

UV2 Series
These UV Light Units provide superior cost performance. 25 times higher output than the previous models(Comparison with Bar Lights). For replacement of black lights.
IR Lights [Infrared Lighting]
These IR Lights provide a selection with peak wavelength of 850 and 940 nm. These Light Units are ideal for various types of imaging in which light must penetrate the object.
IR2 Series

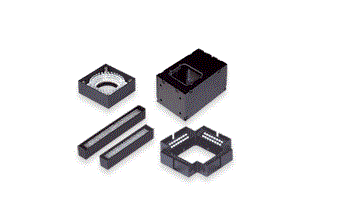

These IR Lights provide a selection with peak wavelengths. CCS offers a rich product lineup of 18 series and 36 models.
IR Series
These IR Lights can provide optimum peak wavelength in accordance with the spectral responsivity characteristics of the camera and the optical system. CCS offers a rich product lineup of 9 series and 32 models.
Waterproof Lights
These Waterproof Lights have a protective structure of IP67 in connection with a dedicated cable.

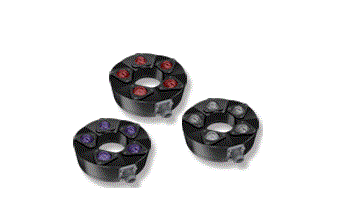

HLDR-IP Series
These waterproof Ring Lights ensure the brightness with condensing lenses. IP67 compliance. Adopting an M12 connector.
Light Units with Intensity Control Unit
With the IU Series, you can change light intensity and perform light ON/OFF control without an external controller.

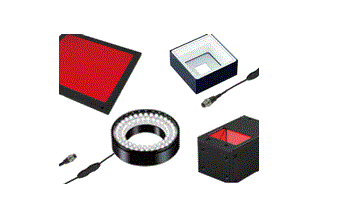

IU Series
The light intensity can be set to any of the 126 levels by adjusting the Intensity Control Unit. The IU Series has an M12 input connector, to which you can connect smart cameras and other devices to supply power.
