VAL LIGHTING

VAL is an original brand under VS Technology Group. VAL develops and manufactures a wide range of LED lighting products for the machine vision and smart camera industries.

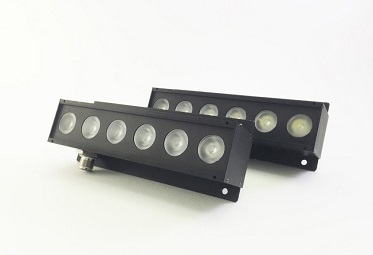

VL-AB-1 SERIES

ADVANCED BAR LIGHT

♦ Suitable for long WD (>150mm).
♦ Suitable for large FOV.
♦ Compact design and light weight.
♦ Require PWM control to adjust brightness.
♦ M12 connector design. *except RGB model.
♦ RoHS compliant.

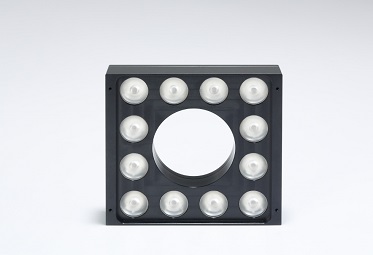

VL-ADS SERIES

DIRECT SQUARE LIGHT

♦ Suitable for various inspection applications.
♦ Suitable for long WD (>150mm).
♦ Higher Brightness than previous ring-light.
♦ RoHS compliant.

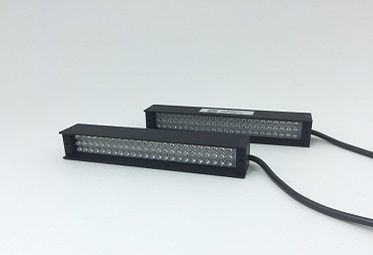

VL-B SERIES

BAR LIGHT

♦ Adjustable lighting angle according to the object shape.
♦ High brightness with direct light.
♦ RoHS compliant.

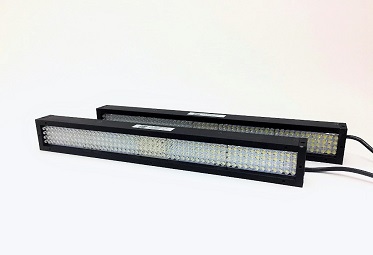

VL-BN SERIES

BAR LIGHT

♦ Adjustable lighting angle according to the object shape.
♦ High brightness with direct light.
♦ RoHS compliant.
♦ Optional diffuser plate is available.

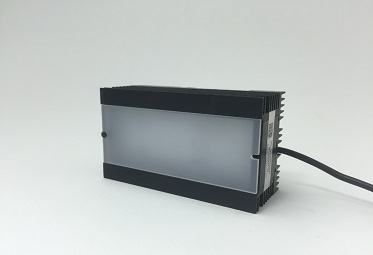

VL-BP SERIES

BAR LIGHT

♦ Adjustable lighting angle according to the object shape.
♦ High brightness with direct light.
♦ Removable diffused plate is attached as a standard package.
♦ RoHS compliant.

VL-LRDH SERIES

HIGH POWER LOW ANGLE RING DIFFUSED LIGHT

♦ Higher Brightness than previous LRD series. (more than 2 times brighter)
♦ Suitable for various application.
♦ Prevention of LED glare and reflections.
♦ Light evenly spread out onto the object surface.
♦ RoHS compliant.

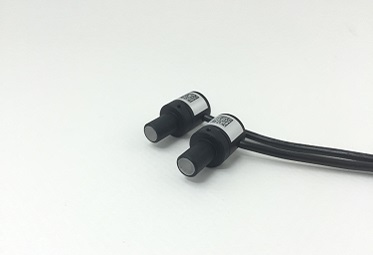

VL-CS SERIES

CO-AXIAL SPOT LIGHT

♦ For Telecentric Lens illumination.
♦ 12V / 24V type are available.
♦ Compact design.
♦ RoHS compliant.

VL-CS SERIES

CO-AXIAL SPOT LIGHT

♦ For Telecentric Lens illumination.
♦ 12V / 24V type are available.
♦ Compact design.
♦ RoHS compliant.

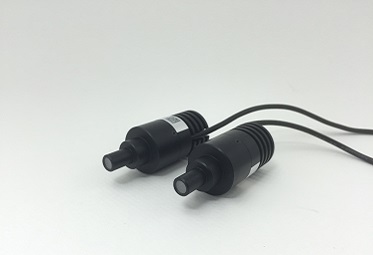

VL-CSH SERIES

HIGH-POWER CO-AXIAL SPOT LIGHT

♦ For Telecentric Lens illumination.
♦ High-power type. (Max. 700mA)
♦ Suitable for high-speed or high-magnification application.
♦ RoHS compliant.

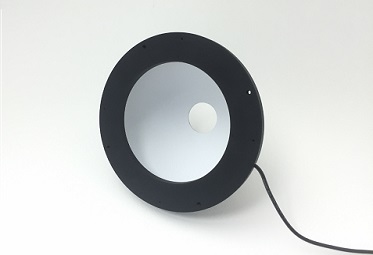

VL-D SERIES

DOME LIGHT

♦ Uniform non-shadowy light.
♦ 4 models in different size.
♦ Reasonable price.
♦ RoHS compliant.

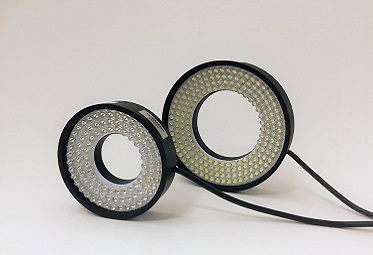

VL-DR SERIES

DIRECT RING LIGHT

♦ Suitable for various inspection applications.
♦ Easy and flexible installation and adjustment with 360 degree lighting.
♦ RoHS compliant.

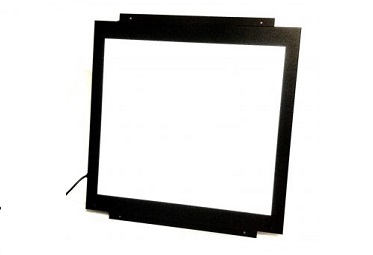

VL-EB SERIES

EDGE BACK LIGHT

♦ Suitable for edge inspection with large FOV.
♦ Uniform light distribution.
♦ RoHS compliant.

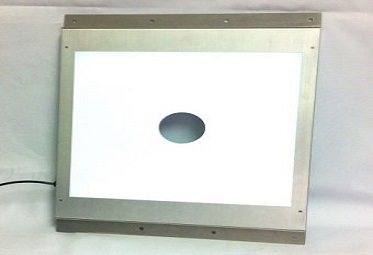

VL-EBH SERIES

EDGE BACK LIGHT WITH CENTER HOLE

♦ Uniform light distribution.
♦ Suitable for Pick & Place / Positioning applications.
♦ RoHS compliant.

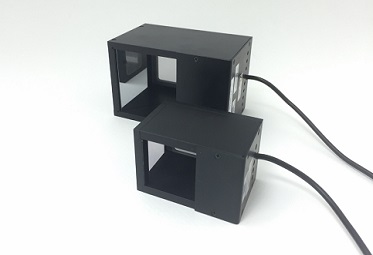

VL-EXC SERIES

EXTERNAL CO-AXIAL BOX LIGHT

♦ Uniform illumination on flat surfaces.
♦ Suitable for surface inspection.
♦ RoHS compliant.

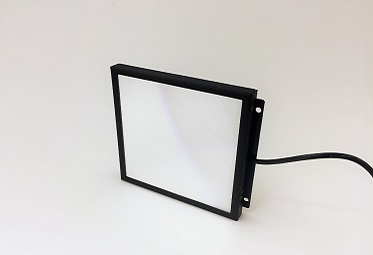

VL-CB SERIES

DIRECT CHIP BACK LIGHT

♦ Highly uniform light by using high-density Chip LED.
♦ Ultra slim design.
♦ RoHS compliant.

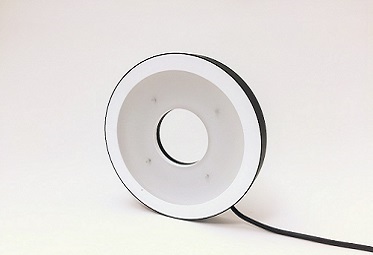

VL-RD SERIES

DIFFUSED RING LIGHT

♦ Suitable for inspection of glossy object.
♦ Prevention of LED glare and reflections.
♦ Light evenly spread out onto the object surface.
♦ RoHS compliant.

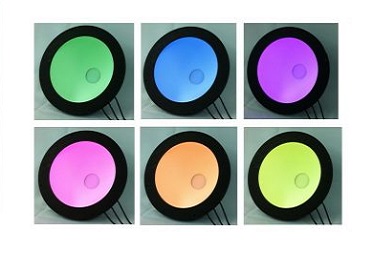

VL-RGB SERIES

RGB (MULTI-COLOR) LIGHT

♦ More than hundred color variation.
♦ Compact design with light weight.
♦ 3 channels (R/G/B) control.
♦ Suitable for wide range application.
♦ Suitable for vision engineer to find out the best color in the evaluation period.

VL-TLN SERIES

TELECENTRIC LIGHTING

♦ Suitable for High-accuracy measurement.
♦ Improve the DOF of image with Telecentric lens for camera side.
♦ Enables to get the image with high-level edge contrast.
♦ Suitable application is, Metal parts / Medical equipment / Electronics etc.
♦ RoHS compliant.

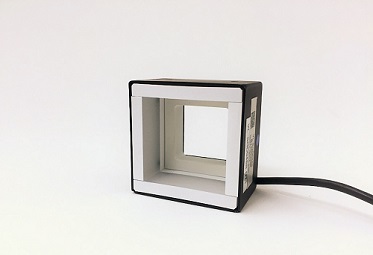

VL-SQD SERIES

SQUARE DIFFUSED LIGHT

♦ Suitable for inspection of glossy object.
♦ SQD120 model is high-power type than other size.
♦ RoHS compliant.

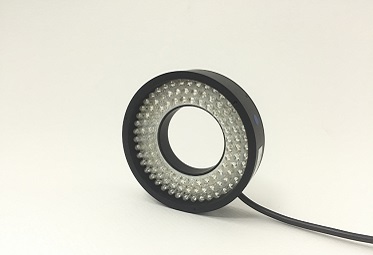

VL-FR SERIES

FLAT RING LIGHT

♦ Suitable for various inspection applications.
♦ Easy and flexible installation and adjustment with 360 degree lighting.
♦ RoHS compliant.

VL-FRD SERIES

FLAT RING LIGHT

♦ Ultra Slim design for space constrained application.
♦ Suitable for large FOV application.
♦ Diffuser is attached as a standard package.
♦ RoHS compliant.

VL-HR SERIES

HORIZONTAL RING LIGHT

♦ Suitable for the detection and small convex and concave defects on surface.
♦ Ideal to emphasize the edge-crack.
♦ RoHS compliant.

VL-LR SERIES

LOW ANGLE RING LIGHT

♦ Suitable for various inspection applications.
♦ Low angle ring provides different image from direct ring light image.
♦ RoHS compliant.

VL-LRD SERIES

LOW ANGLE RING DIFFUSED LIGHT

♦ Suitable for inspection of glossy object.
♦ Compact design.
♦ Prevention of LED glare and reflections.
♦ Light evenly spread out onto the object surface.

Fixed Focal Length Lenses

Adjustable Focus and Iris for Maximizing DOF

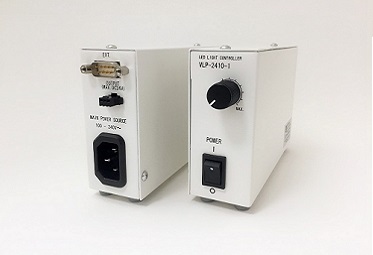

VLP-2410-1 (RS-232C COMPLIANT)

1 CHANNEL POWER SUPPLY

♦ 24V Analog Power Supply.
♦ Slim body design.
♦ External control available via RS-232C compliant.
♦ RoHS compliant.

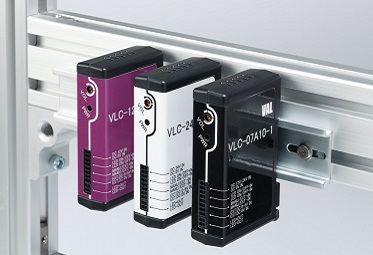

VLC SERIES

1CH LED LIGHT CONTROLLER

♦ Super compact size with light weight.
♦ Suitable for machine use.
♦ 1CH up to 10W.
♦ 3 models for 24V / 12V / 0.7A.
♦ Din-rail attachable.
♦ External On/Off and brightness control are available.
♦ RoHS compliant.

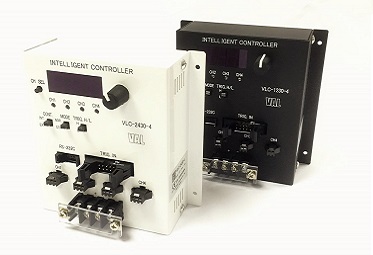

VLC (MULTI-CHANNELS) SERIES

MULTI CHANNLES LED LIGHT CONTROLLER

♦ 2models for 12V and 24V.
♦ 4CH / up to 30W.
♦ Strobe mode available (not over-drive).
♦ External control available via RS-232C compliant.
♦ Compact design.
♦ RoHS compliant.

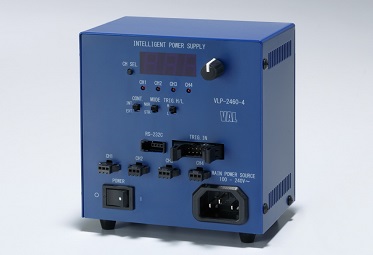

VLP (RS-232C COMPLIANT) SERIES

INTELLIGENT DIGITAL POWER SUPPLY

♦ 24V Digital power supply.
♦ strobe mode available (not over-drive).
♦ External control available via RS-232C compliant.
♦ Compact design.
♦ Din-rail attachable.
♦ RoHS compliant.

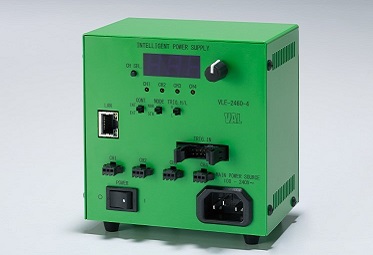

VLP (ETHERNET) SERIES

INTELLIGENT DIGITAL POWER SUPPLY

♦ 24V Digital power supply.
♦ Strobe mode available (not over-drive).
♦ External control available via Ethernet.
♦ Compact design.
♦ Din-rail attachable.
♦ RoHS compliant.

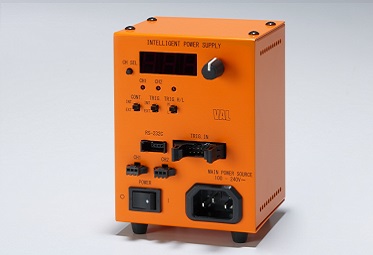

VLP (OVER-DRIVE) SERIES

STROBE POWER SUPPLY

♦ For 24V lighting.
♦ Overdrive strobe.
♦ External control available via RS-232C compliant.
♦ 2models for 2CH / 3CH.
♦ Compact body.
♦ Din-rail attachable.
♦ RoHS compliant.
