Description

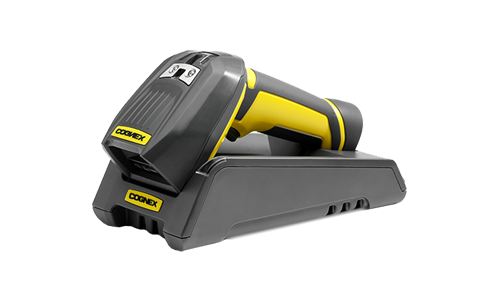

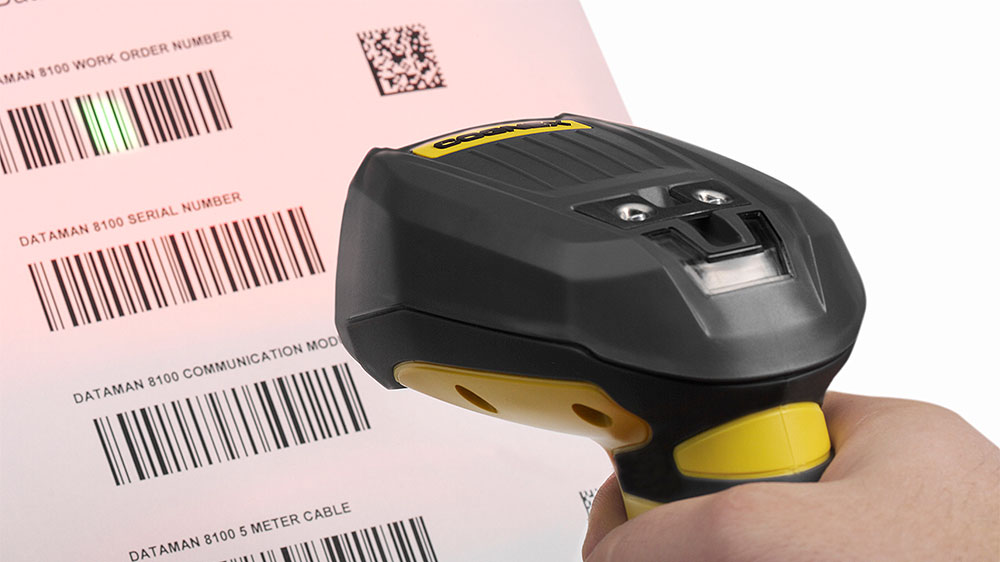

DataMan 8050 series
handheld barcode readers are equipped with patented decoding algorithms to read well-marked 1D and 2D barcodes, including direct part mark (DPM) codes, in the harshest manufacturing environments. The flexible modular design ensures the DataMan 8050 series readers are ready to meet ever changing communication needs.
The DataMan 8050 series models include:
- DataMan 8050 is designed to decode well-marked 1D and 2D label-based codes.
- DataMan 8050X/8050HDX is designed to decode challenging and smaller 2D DPM codes.
| DataMan 8050 | DataMan 8050X | DataMan 8050HDX |
|---|---|---|
| Algorithms | 1DMax with Hotbars | 1DMax with Hotbars, 2DMax, PowerGrid |
| Image Sensor | 752 x 480 global shutter | |
| Trigger | Handle trigger, presentation | |
| Status Outputs | LED, beeper | |
| Aimer | Centralized LED aimer | |
| Lens Options | Fixed focus | |

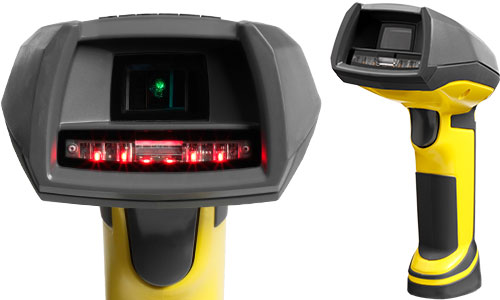

| Lighting | Integrated LED with near/far optics | |
| Communication | Serial module: RS-232, USB Ethernet module: TCP/IP, FTP, industrial protocols: Ethernet/IP, PROFINET, MC Protocol, ModBus TCP |
|
| Dimensions | 210 mm x 155 mm x 85 mm | |
| Depth of Field | 7 mil 2D Code: Up to 40 mm 10 mil 2D Code: Up to 80 mm 6 mil Code39: Up to 90 mm |
4 mil 2D Code: Up to 55 mm 5 mil 2D Code: Up to 75 mm |
| Protection | IP65 | |
| ESD Standards Compliance | IEC 61340-5-1:2016 for select models only | |
