Backlights

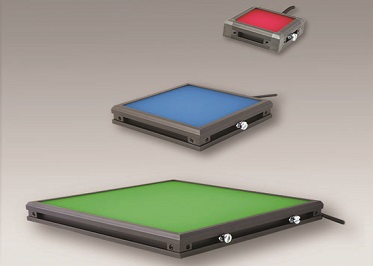

BL 2D Expandable Series

Back Lit LED Backlight

♦ Extremely consistent light over the entire active area of illumination.
♦ Available in 1” x 1” increments; Sizes from 1” x 1” up to 22” x 34”.

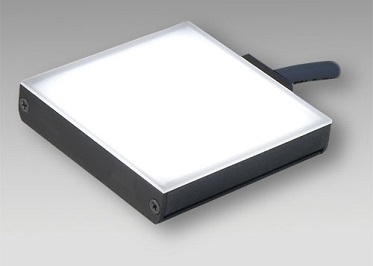

BL128 Expandable Series

Back Lit Low Profile Backlights

♦ Edge to edge back lighting in a 12mm (.48”) thick housing.
♦ 2” wide, expandable in 1” increments; Lengths from 1” – 14”.
♦ Optional washdown version offers IP65 compliant design.

BL138 Expandable Series

High Power Linear Backlights

♦ 295,000 lux – perfect for line-scanning applications.
♦ Available 6” (152.4mm) increments from 6” (152.4mm) to 96” (2438.4mm) with the exception of a 3” (76.2mm)model.
♦ Intensity control of entire light via 0 – 10v input.

BL168 Expandable Series

HighPower Linear Backlight

♦ 70% brighter than the BL138.
♦ Perfect for line scanning applications: 507,000 lux.
♦ Expandable in 6” increments; available in lengths from 152mm (6”) up to 2438mm (96”).
♦ Intensity control of entire light via 0-16v input.

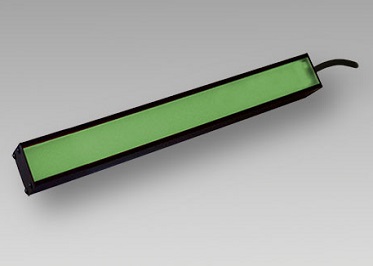

BL193 Expandable Series

Low Power Linear Backlights

♦ Extremely consistent light over the entire active area of illumination.
♦ 25mm (1”) wide illuminated strip in a 33.8mm (1.3”) wide housing.
♦ Compact design and light weight.
♦ Require PWM control to adjust brightness.

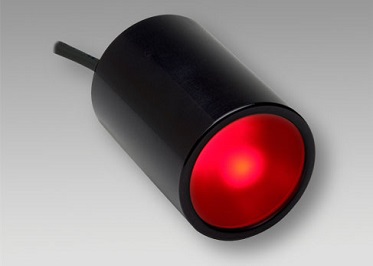

BL5420

Small Area Backlight

♦ Available in 4mm or 20mm spot sizes.
♦ Can be used as a diffuse light source.

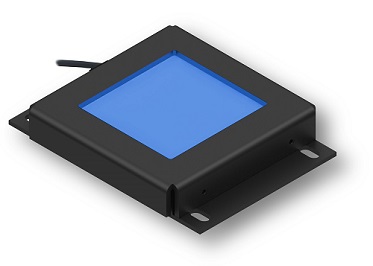

BT050050

MicroBrite™ Edge Lit Backlight (Member of the MicroBrite™ BT Series)

♦ Ultra thin profile for easy installation in tight spaces.
♦ Highest flux density among all Ai backlights.
♦ Large working area with uniform illumination.

BT100100

MicroBrite™ Edge Lit Backlight (Member of the MicroBrite™ BT Series)

♦ Ultra thin profile for easy installation in tight spaces.
♦ Highest flux density among all Ai backlights.
♦ Large working area with uniform illumination.

BT200100

MicroBrite™ Edge Lit Backlight (Member of the MicroBrite™ BT Series)

♦ Ultra thin profile for easy installation in tight spaces.
♦ Highest flux density among all Ai backlights.
♦ Large working area with uniform illumination.

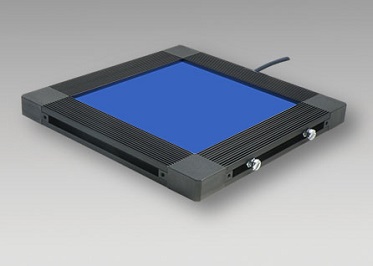

BX 2D Expandable Series

Edge Lit LED Backlight

♦ Uniform illumination and low heat output.
♦ Available in 1” x 1” increments up to 12” x 12”.

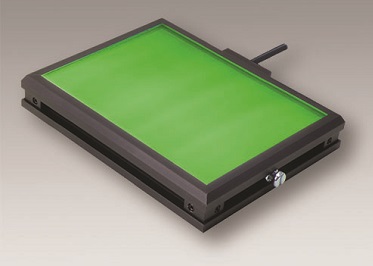

CB 2D Expandable Series

Back Lit Collimated Backlights

♦ Collimation greatly improves edge detection of curved objects.
♦ Available in 1” increments; Sizes from 1” x 1” up to 16” x 16”.

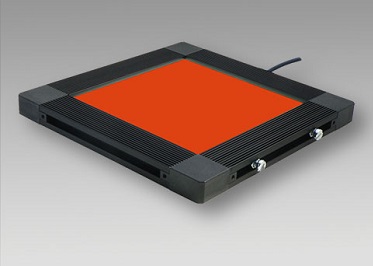

CX 2D Expandable Series

Side Lit Collimated Backlights

♦ 30% brighter than same size surface mount light.
♦ Uniform illumination and low heat output.
♦ Available in 1” x 1” increments up to 16” x 16”.

Bar Lights

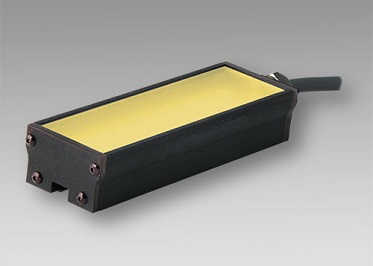

AL116 Expandable Series

Expandable, Compact Bar Lights

♦ High Intensity light in a small package – only 32.2mm (1.26”) wide.
♦ Expandable in 50mm (2”) increments; lengths from 50mm (2”) to 508mm (20”) Washdown option available.
♦ Diffuse lighting good for close working distance.
♦ Convenient M4 nut channel for mounting
♦ Broad range of wavelengths available

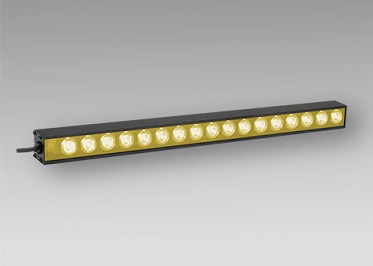

LL174 Expandable Series

General Purpose Bar Lights

♦ Intense illumination for long working distances or large area applications.
♦ Works great in pairs to create a square area of illumination.
♦ Three lens options – narrow, medium (standard), and wide.
♦ Washdown option available.
♦ LL174 Expandable in 6” Increments from 6” to 84”.
♦ Previous LL174 Derivatives: LL6324 (24”), LL6212 (12”), LL5806 (6”) (please see link to download these sheets below).

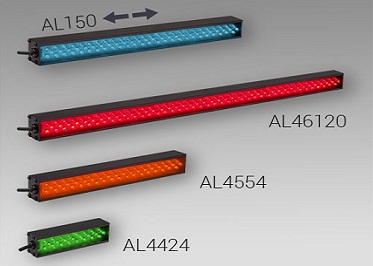

AL150 Expandable Series

BALA (Broad Area Linear Array) Bar Lights

♦ Provides very even illumination along the length of the light, with controlled fall off in the transverse direction.
♦ Designed to provide low angle of incidence illumination over a long, wide area.
♦ Applications requiring very even illumination over a wider area can utilize two BALAs aligned parallel to and facing each other.
♦ AL150 – Expandable in 1” increments up to 80”.

♦ AL150 Derivatives: AL46120 (20”), AL4554 (9”), AL4424 (4”).

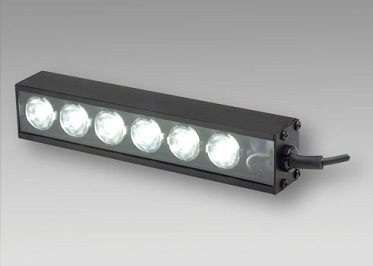

AL179 Expandable Series

High Power Bar Light

♦ 3x brighter than the LL5806/LL6324.
♦ For use in long distance or large area inspections.
♦ Expandable in 152mm (6”) increments up to 1,219mm (48”).
♦ Wash down option provides IP compliance.

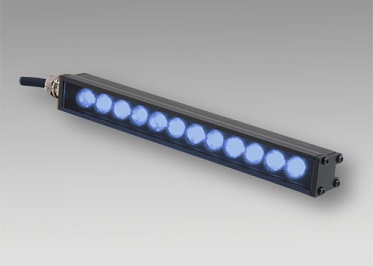

AL295 Expandable Series

MicroBrite™ Bar Light

♦ High performance compact bar light..
♦ Outperforms larger bar lights on the market.
♦ Expandable in 75mm (3”) increments up to 450mm (18”).
♦ Broad range of wavelengths available.

AL126 Expandable Series

Compact Bar Light

♦ High intensity light in a small package – Only 20.1 mm (.79”) wide.
♦ Best suited for close-up inspection (working distance of < 300mm (12””)).
♦ Expandable in 2” increments from 2” to 40”.
♦ Washdown version available.
♦ Very diffuse illumination.
♦ Broad range of wavelengths available.

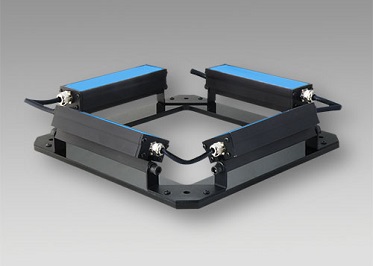

QM116

Quad Mounted Lights – AL116

♦ Four individually mounted AL116 Rev A units can be configured for specific lighting needs.
♦ 180° pivoting mounts lock securely.

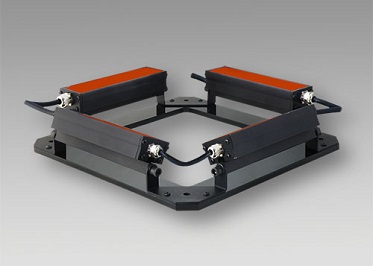

QM126

Quad Mounted Lights – AL126

♦ Four individually mounted AL126 units can be configured for specific lighting needs.
♦ 180° pivoting mounts lock securely.

Coaxial Lights

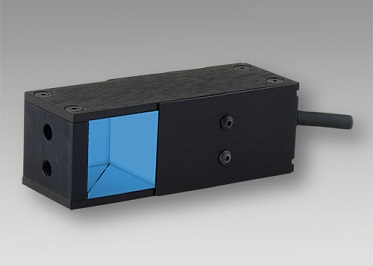

DL072

Legacy Medium Power Coaxial Light

♦ High brightness LED offers long life (50k hours).
♦ 25mm x 25mm (1″ x 1″) field-of-view designed for use on small parts or in environments with space limitations.

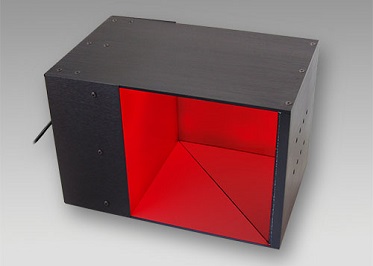

DL085

Legacy Low Power Coaxial Light

♦ Even illumination over the full 150mm x 150mm (6″ x 6″) field of view.
♦ Ai’s largest ADI (Axial Diffuse Illuminator), designed for inspecting objects of a specular nature.

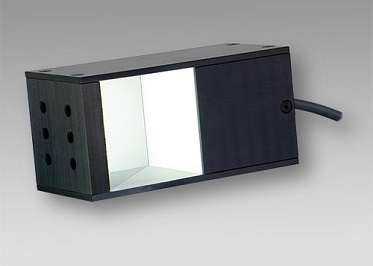

DL104

Legacy Medium Power Coaxial Light

♦ Consistent diffuse illumination over the 50mm x 50mm (2” x 2”) field of view.
♦ Utilizes heat sinking to cool the illumination source, providing low maintenance and long life performance.

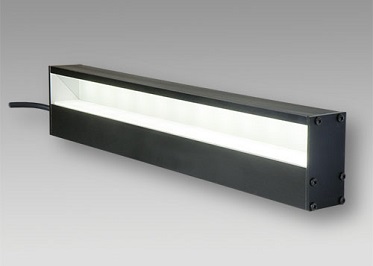

DL110

Linear Coaxial Light

♦ Even illumination over the full 25 x 300mm (1″ x 12″) field of view – ideal for coaxial line scan applications.
♦ Includes high efficiency, coated easy clean dust cover to protect the beam splitter combining glass.

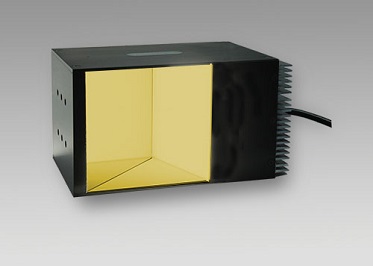

DL22-075

High Power Coaxial Light Series

♦ Consistent diffuse illumination over 75 x 75mm (3” x 3”) the field of view.
♦ Improved performance with unique modular heat sink and circuit design
♦ Excellent light stability.
♦ Over twice as bright as the DL2449 and DL104.
♦ Broad range of wavelengths available.
♦ Five Sizes Available in series; 25, 50, 75, 100 and 150mm.

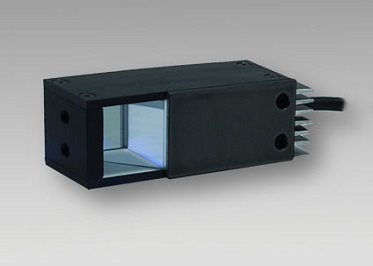

DL225-025 Series

High Power Coaxial Light Series

♦ Consistent diffuse illumination over the 25 x 25mm (1″ x 1”) field of view.
♦ Improved performance with unique modular heat sink and circuit design.
♦ Excellent light stability.
♦ Over twice as bright as the DL2449 and DL104.
♦ Broad range of wavelengths available.

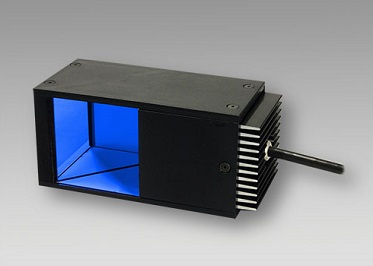

DL225-050 Series

High Power Coaxial Light Series

♦ Consistent diffuse illumination over 50 x 50mm (2” x 2”) the field of view.
♦ Improved performance with unique modular heat sink and circuit design.
♦ Excellent light stability.
♦ Over twice as bright as the DL2449 and DL104.
♦ Broad range of wavelengths available.
♦ Five Sizes Available in series; 25, 50, 75, 100 and 150mm.

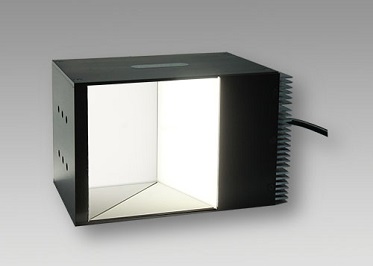

DL225-100 Series

High Power Coaxial Light Series

♦ Consistent diffuse illumination over 100 x 100mm (4” x 4”) the field of view.
♦ Improved performance with unique modular heat sink and circuit design.
♦ Excellent light stability.
♦ Over twice as bright as the DL2449 and DL104.

♦ Broad range of wavelengths available.

♦ Five Sizes Available in series; 25, 50, 75, 100 and 150mm.

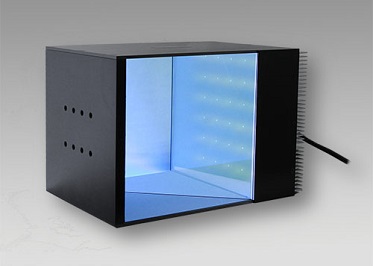

DL225-150 Series

High Power Coaxial Light Series

♦ Consistent diffuse illumination over 150 x 150mm (6” x 6”) the field of view.
♦ Improved performance with unique modular heat sink and circuit design
♦ Excellent light stability.
♦ Over twice as bright as the DL2449 and DL104.
♦ Broad range of wavelengths available.

♦ Five Sizes Available in series; 25, 50, 75, 100 and 150mm.

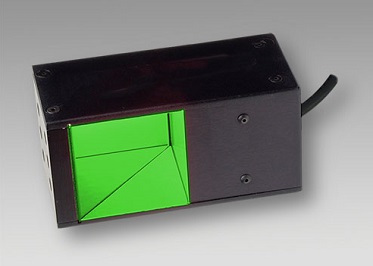

DL2449

Legacy Low Power Coaxial Light

♦ Even illumination over the full 50mm x 50mm field of view.
♦ Heat sinking to cool the illumination source.

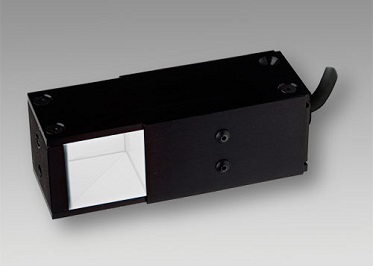

DL3316

Legacy Low Power Coaxial Light

♦ Even illumination over the full 25mm x 25mm field of view.
♦ Designed for use on small parts, or in environments with space limitations.

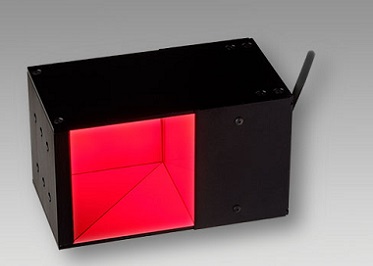

DL37100

Legacy Low Power Coaxial Light

♦ Even illumination over the full 75mm x 75mm (3″ x 3″) field of view.
♦ Designed for inspecting large specular objects.

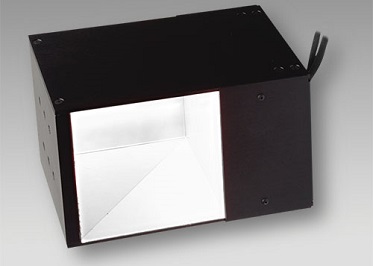

DL38144

Legacy Low Power Coaxial Light

♦ Even illumination over the full 100mm x 100mm (4″ x 4″) field of view.
♦ Designed for large object inspection of specular objects.

Diffuse Lights

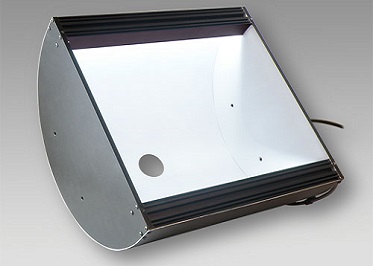

DL067 Expandable Series

Large Area Diffuse Light

♦ 12” wide linear diffuse light for use with highly reflective materials.
♦ Available in 6” increments; Lengths from 6” to 36”.
♦ Can be built with up to 4 camera view holes.

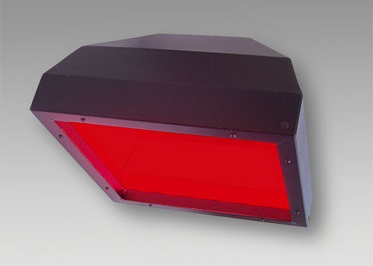

DL071

Large Area Diffuse Light

♦ Designed for inspecting large, reflective objects.
♦ Extremely diffuse illumination over an area 457.2 mm (18”) square.

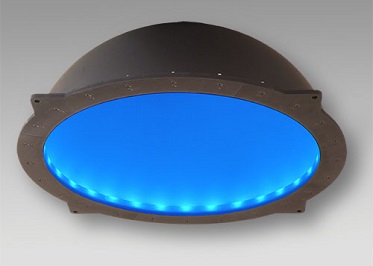

DL080

Large Area Diffuse Light

♦ Diffuse illumination for inspecting specular objects.
♦ Designed for large object inspections.
♦ 698.5mm (27.5”) outside diameter.

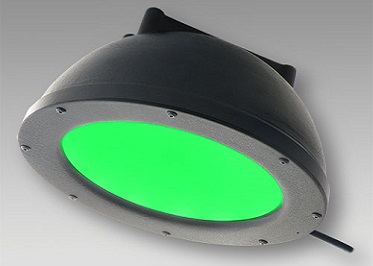

DL097

General Purpose Diffuse Light

♦ 3x brighter than standard LEDs in the DL9160 dome.
♦ Rugged metal construction.

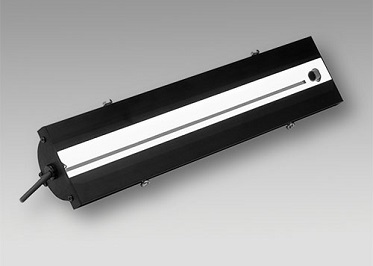

DL151 Expandable Series

Linear Diffuse Light

♦ Linear diffuse light for use with highly reflective materials.
♦ Expandable in 2” increments; Lengths from 2” to 70”.

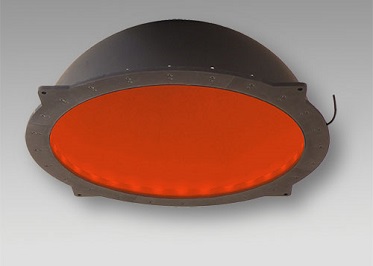

DL180

Large Area Diffuse Light

♦ 1.12 meter (44”) dome.
♦ Large diffuse dome for inspecting specular objects.
♦ Designed for large object inspections.

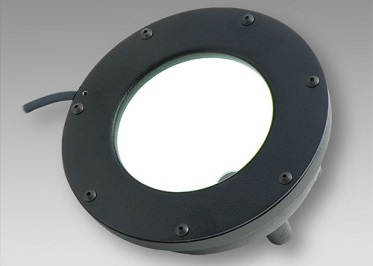

DL194

General Purpose Diffuse Light

♦ 2x brighter than the previous version.
♦ Rugged metal construction.
♦ Suitable for imaging detail on reflective curved or uneven surfaces.
♦ Best applied to objects no larger than 3 1/2” diameter.

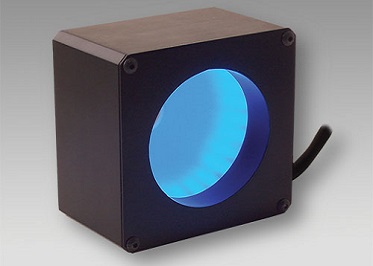

DL2230

General Purpose Diffuse Light

♦ A modified, extremely efficient integrating light source.
♦ Compact, space saving design – ideally suited for inspecting small, specular objects.

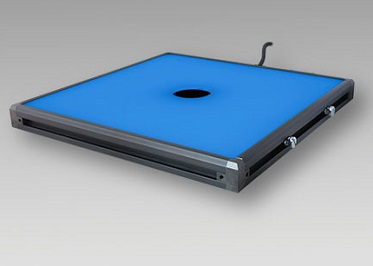

FD 2D Expandable Series

Back Lit Flat Diffuse Lights

♦ Space saving design for illuminating highly reflective objects.
♦ Diffuse illumination in 1” x 1” increments; Sizes from 4” x 4” to 22” x 34” (even) or 3” x 3” up to 21” x 33” (odd).

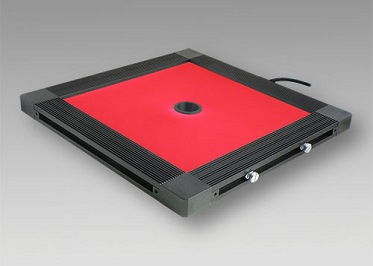

FX 2D Expandable Series

Edge Lit Flat Diffuse Lights

♦ Uniform illumination.
♦ Available in 1” x 1” increments from 3” x 3” to 24” x 24”.
♦ Low heat output.
♦ Space saving design for inspecting reflective objects.

Line Lights

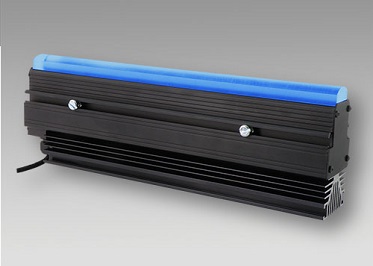

LL137 Expandable Series

High Power Line Lights

♦ 3” (72mm) model available.
♦ Passively cooled design available 6” (152.4mm) increments from 6” (152.4mm) to 96” (2438.4mm).
♦ Perfect for line scanning applications. 200,000 Lux @ 3”; 50,000 hours life.
♦ Intensity control of entire light via 0 – 10v input.

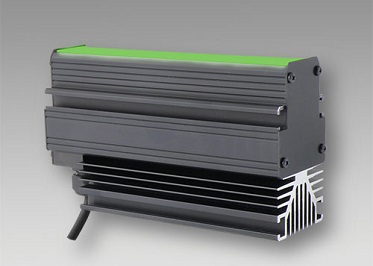

LL158 Expandable Series

Oblique Line Lights

♦ Light exits at 30 degrees from horizontal to illuminate parallel to the material travel in a line scan application.
♦ Passively cooled design in 6” increments; Lengths from 6” to 90”.
♦ Intensity control of entire light via 0 – 10v input.

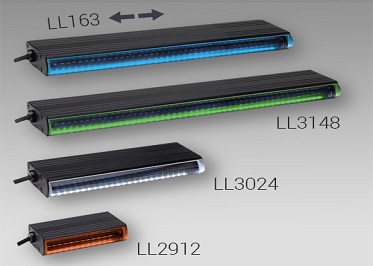

LL163 Expandable Series

Legacy Low Power Line Lights

♦ Suited for use with low intensity, low speed line scan applications.
♦ Red, Green, Blue, White, UV and IR wavelengths available.
♦ Range of Working Distances and Line Widths available.
♦ LL163 – Expandable in lengths of 1.5” up to 80”.
♦ LL163 Derivatives: LL2912 (3”), LL3024 (6”), LL3148 (12”).

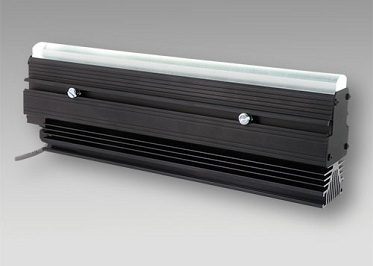

LL167 Expandable Series

High Power Line Lights

♦ 472,000 Lux: 45% brighter than the LL137.
♦ Passively cooled design in 152mm (6”) increments: Available in lengths of 152mm (6”) to 2438mm (96”).
♦ Intensity control of entire light via 0-16v input.

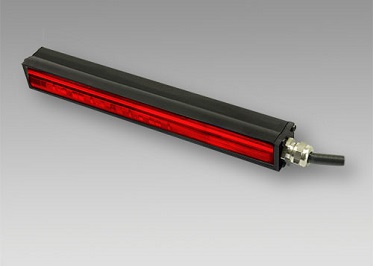

LL232 Expandable Series

MicroBrite™ High Performance Line Light

♦ Fresnel lens; great for generating a narrow, uniform line at close working distance.
♦ Compact form factor.
♦ May be used for line or area scan applications.
♦ Expandable in increments of 50mm; up to 750mm.

Ring Lights - Bright Field

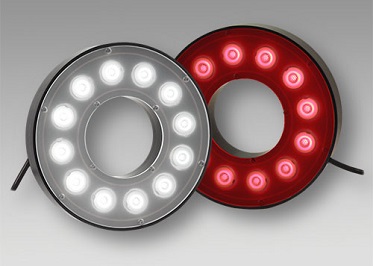

RL113

High Performance Bright Field Ring Light

♦ High intensity from a long working distance – 24,000 lux from 300mm (12”).
♦ IP67 compliant design; washdown capabilities.

RL121

High Performance Bright Field Ring Light

♦ 75.0 mm (2.95”) O.D ring light provides high intensity illumination.
♦ Very low profile – only 14.2 mm (.56”)
♦ Optional adapter rings for camera lens mounting.

RL127

High Performance Bright Field Ring Light

♦ Intense illumination in a compact (116.9 mm DIA) housing.
♦ IP67 compliant design; washdown capabilities.
♦ Axial light source designed for inspecting non-specular objects.

RL1424

Classic Low Power Bright Field Ring Light

♦ Large inner breadth accommodates lenses up to 55mm in diameter.
♦ Can be ordered with a variety of mounting options.

RL169

High Performance Bright Field Ring Light

♦ 47,000 lux from 304mm (12”).
♦ IP67 compliant design; washdown capabilities.

RL208 MicroBrite™ Series

High Performance Bright Field Ring Lights

♦ Provides stable and even light source.
♦ Used to evenly illuminate a variety of surfaces for color or defect detection.
♦ Available in four sizes: 50, 100, 160, and 200mm.
♦ Broad range of wavelengths available.

RL2316

Classic Low Power Bright Field Ring Light

♦ Light weight, efficient space saving design.
♦ Axial light source designed for small, non-specular objects or inspections with limited space.
♦ Compact design and light weight.
♦ Require PWM control to adjust brightness.

RL36120

Classic Low Power Bright Field Ring Light

♦ Intense illumination for large areas where specular reflection is not a problem.
♦ Available in the RGB “All Color” version.

RL4260

Classic Low Power Bright Field Ring Light

♦ Provides significant illumination in a medium sized housing.
♦ Axial light source designed for non-specular objects.

Ring Lights - Dark Field

DF196

MicroBrite™ Series Dark Field Ring Lights

♦ Lensed low-angle diffused illumination.
♦ Used to detect surface defects and edges on a variety of surfaces.
♦ Available in four sizes: 50, 100, 180, and 280mm.

DF197

MicroBrite™ Series Dark Field Ring Lights

♦ Lensed low-angle diffused illumination.
♦ Used to detect surface defects and edges on a variety of surfaces.
♦ Available in four sizes: 50mm, 100mm, 180mm, and 280mm.

DF198

MicroBrite™ Series Dark Field Ring Lights

♦ Provides stable, diffuse, and even light source.
♦ Used to evenly illuminate a variety of surfaces for color or defect detection.
♦ Available in four sizes: 50mm, 115mm, 180mm, and 280mm.

RL1360

Classic Low Power Dark Field Ring Light

♦ 25mm field of view standard; 35mm field of view optional.
♦ Solves a wide array of imaging problems where low angle of incidence and radial illumination is required.

RL152

High Performance Dark Field Ring Light

♦ Designed for multiple camera applications.
♦ Provides illumination suitable for label and lid inspections.
♦ IP67 compliant design.

RL1660

Classic Low Power Dark Field Ring Light

♦ 35mm field of view standard; 45mm and 70mm field of view optional.
♦ Solves a wide array of imaging problems where low angle of incidence and radial illumination are required.

RL2115

Compact Dark Field Ring Light

♦ Produces classic dark field effects.
♦ Designed for inspecting small objects.

RL3536

Classic Low Power Dark Field Ring Light

♦ Exceptional lighting for inspecting specular surfaces.
♦ Produces classic dark field illumination.

RL3940

Classic Low Power Dark Field Ring Light

♦ Low angle illumination in a compact 100mm (3.93”) housing.
♦ Solves a wide array of imaging problems where low angle of incidence and radial illumination is required.

Spot Lights

AL143

General Purpose Spot Light

♦ Available in a wide range of wavelengths.
♦ Illumination for medium working distances.
♦ Compact design, multiple lens options available.
♦ Convenient M4 nut channel mounting on back.
♦ Washdown version available.

SL073

General Purpose Spot Light

♦ High current LED for maximum brightness.
♦ 22.9 mm diameter barrel with M3 mounting holes.

SL112

Spot/Coaxial Light

♦ Designed to replace fiber optic light sources in coaxial/lensing applications.
♦ Compact light head provides efficient thermal management to promote long LED life.
♦ Optional couplers available for use with Dolan-Jenner, Fostec, and Moritex fiber bundles – see the CP112 page in accessories.

SL1236

Classic Low Power Spot Light

♦ High intensity illumination for non-specular objects.
♦ Available in RGB “all color” version.

SL147

General Purpose Spot Light

♦ Available in a wide range of wavelengths.
♦ High intensity illumination from a long distance.
♦ Compact design includes passive thermal management and convenient M4 nut channel for mounting.
♦ Washdown version available.

SL162

Spot/Coaxial Light

♦ Designed to replace fiber optic light sources in coaxial/lensing applications.
♦ Compact light head provides efficient thermal management to promote long LED life.
♦ Optional couplers available for use with Dolan-Jenner, Fostec, and Moritex fiber bundles – see the CP112 page in accessories.
♦ User selectable light intensity on 24v version.
♦ Available in a wide range of wavelengths.

SL164

General Purpose Spot Light

♦ Compact light head provides efficient thermal management to promote long LED life.
♦ Available in a wide range of wavelengths.

SL185

High Performance Spot Light

♦ Large format useful with high speed cameras.
♦ Very high intensity, uniform light for long working distance and large field-of-view.
♦ Large format useful with high speed cameras.
♦ Large format useful with high speed cameras.

SL191

Pattern Generating Light Source

♦ Designed for applications requiring structured illumination.
♦ Pattern generation is ideal for locating edges, offsets, and assessing topography.
♦ Requires reticle and lens (sold separately)
• For use with standard C Mount 2/3” lenses
• Uses negatively patterned 21mm reticle.
♦ A complete package includes the SL191, a preinstalled reticle of choice and final focusing lens (see SL191 Package).

SL191 Package

Pattern Generating Light Source with Reticle and Lens

♦ Package includes the SL191 with preinstalled reticle of choice, and final focusing lens.
♦ Ideal for 3D reconstruction and mapping.
♦ Light Intensity: 3.0 mW/cm2 or 245,000 Lux (white) measured at the end of the barrel without reticle and lens.

SL223

MicroBrite™ Spot/Coaxial Light

♦ Barrel is 38.1mm long with a 7.8-7.9mm diameter.
♦ Works in conjunction with coaxial lenses.
♦ Available in a wide range of wavelengths.
♦ 25X brighter than the SL4301 (white versions).
♦ Washdown capable; IP65.

SL2420

Classic Low Power Spot Light

♦ Ai’s most popular spot light – intense illumination in a small package.
♦ High contrast on non-reflective objects.

SL2507

Classic Low Power Spot Light

♦ High intensity illumination for non-specular objects.
♦ Compact design – 23mm diameter housing.

SL4301

Classic Low Power Spot/Coaxial Light

♦ Designed to replace fiber optics in coaxial lighting applications.
♦ Standard or 5v versions available.

EuroBrite Product Line

AL-S025300 EuroBrite™

Strobe/Continous Bar Light

♦ Cost-effective, feature-rich design.
♦ Robust, sealed IP67 enclosure.
♦ On-board smart driver – seamless strobe or continuous.

♦ Adaptive Overdrive – optimized power under all strobe conditions.
♦ Adaptive Power – factors in your light heat sink options and external temperature options to maximize performance and lifespan.
♦ Daisy-chain up to 4 units with pass-through control.

BL-S050075 EuroBrite™

Strobe /Continuous Backlight

♦ Cost-effective, feature-rich design.
♦ Robust, sealed IP67 enclosure.
♦ On-board smart driver – seamless strobe or continuous.
♦ Adaptive Overdrive – optimized power under all strobe conditions.
♦ Adaptive Power – factors in your light heat sink options and external temperature options to maximize performance and lifespan.

BL-S100150 EuroBrite™

Strobe/Continuous Large Backlight

♦Cost-effective, feature-rich design.
♦ Robust, sealed IP67 enclosure.
♦ On-board smart driver – seamless strobe or continuous.
♦ Adaptive Overdrive – optimized power under all strobe conditions.
♦ Adaptive Power – factors in your light heat sink options and external temperature options to maximize performance and lifespan.
♦ Daisy-chain up to 4 units with pass-through control.

RL-S052120 EuroBrite™

Strobe/Continuous Ring Light

♦ Cost-effective, feature-rich design.
♦ Robust, sealed IP67 enclosure.
♦ On-board smart driver – seamless strobe or continuous.
♦ Adaptive Overdrive – optimized power under all strobe conditions.
♦ Adaptive Power – factors in your light heat sink options and external temperature options to maximize performance and lifespan.

SL-S050075 EuroBrite™

Strobe/Continuous Spot Light

♦ Cost-effective, feature-rich design.
♦ Robust, sealed IP67 enclosure.
♦ On-board smart driver – seamless strobe or continuous.
♦ Adaptive Overdrive – optimized power under all strobe conditions.
♦ Adaptive Power – factors in your light heat sink options and external temperature options to maximize performance and lifespan.

SL-S100150 EuroBrite™ Spot Light

Strobe/Continuous Large Spot Light

♦ Cost-effective, feature-rich design.
♦ Robust, sealed IP67 enclosure.
♦ On-board smart driver – seamless strobe or continuous.
♦ Adaptive Overdrive – optimized power under all strobe conditions.
♦ Adaptive Power – factors in your light heat sink options and external temperature options to maximize performance and lifespan.
♦ Daisy-chain up to 4 units with pass-through control.
